Example: Calculate and Visualize OBSO

To calculate and visualize the Off-Ball Scoring Opportunity (OBSO) [Spearman, 2018] using the Space_Model, you can utilize the following code snippets.

Calculate OBSO

from spaceeval import Space_Model

event_path = './event'
home_tracking_path = './home_tracking'
away_tracking_path = './away_tracking'
out_path = './'

model = Space_Model(space_model='soccer_OBSO',
            event_data=event_path,
            tracking_home=home_tracking_path,
            tracking_away=away_tracking_path,
            out_path=out_path)

model.get_obso()

Visualize OBSO

After calculating OBSO, you can visualize it. Here’s how to do it:

from spaceeval import Space_Model

event_id = 8
events_data = './event/event_data_10502.csv'
tracking_home = './home_tracking/home_tracking_10502.csv'
tracking_away = './away_tracking/away_tracking_10502.csv'
ppcf= './obso/10502_PPCF_dict.npy'
out_path = './'
model = Space_Model(space_model='soccer_OBSO')

model.vis_obso(event_id=event_id,
            events_data=events_data,
            tracking_home=tracking_home,
            tracking_away=tracking_away,
            PPCF=ppcf,
            out_path=out_path
            )

Example Visualization

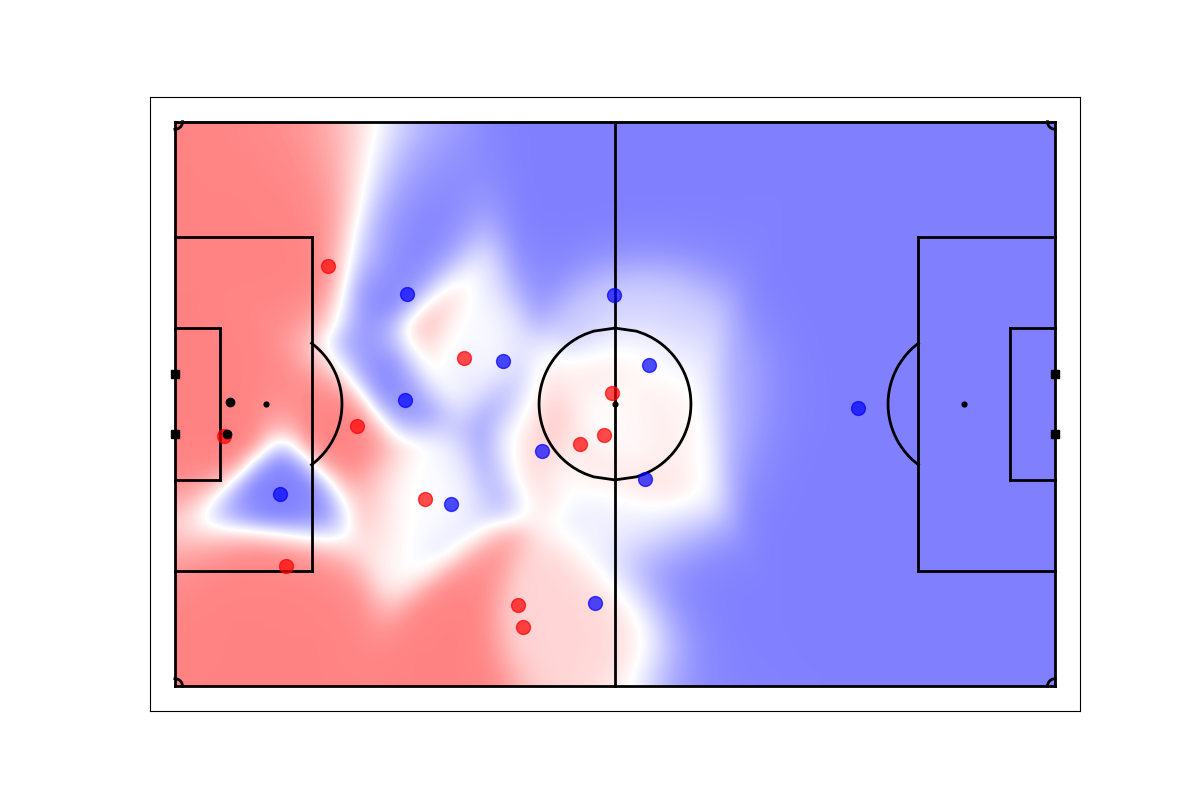

The Visualization results for the OBSO should look like this:

PPCF visualization
